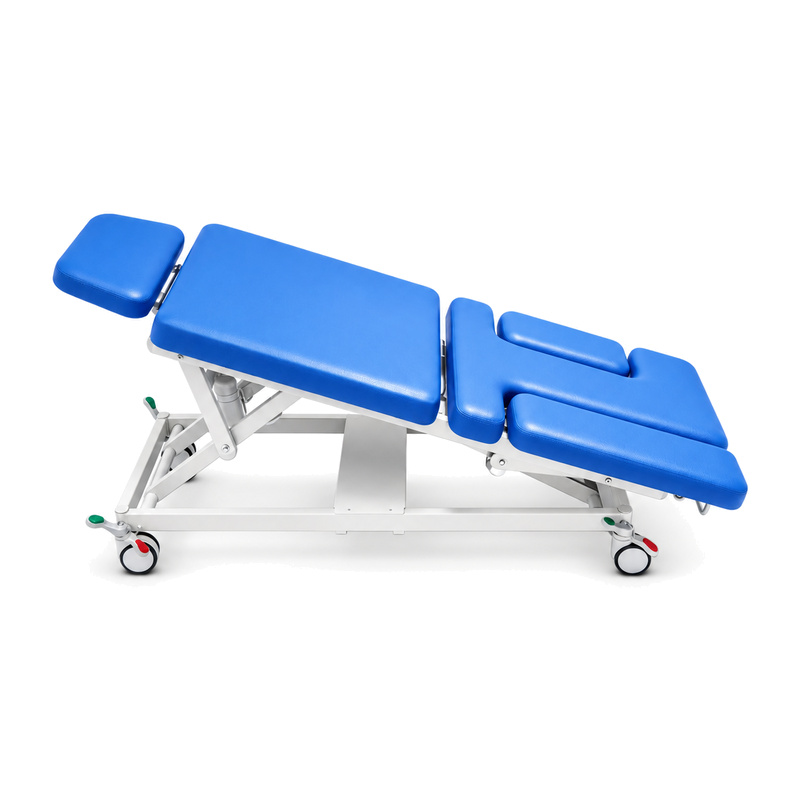

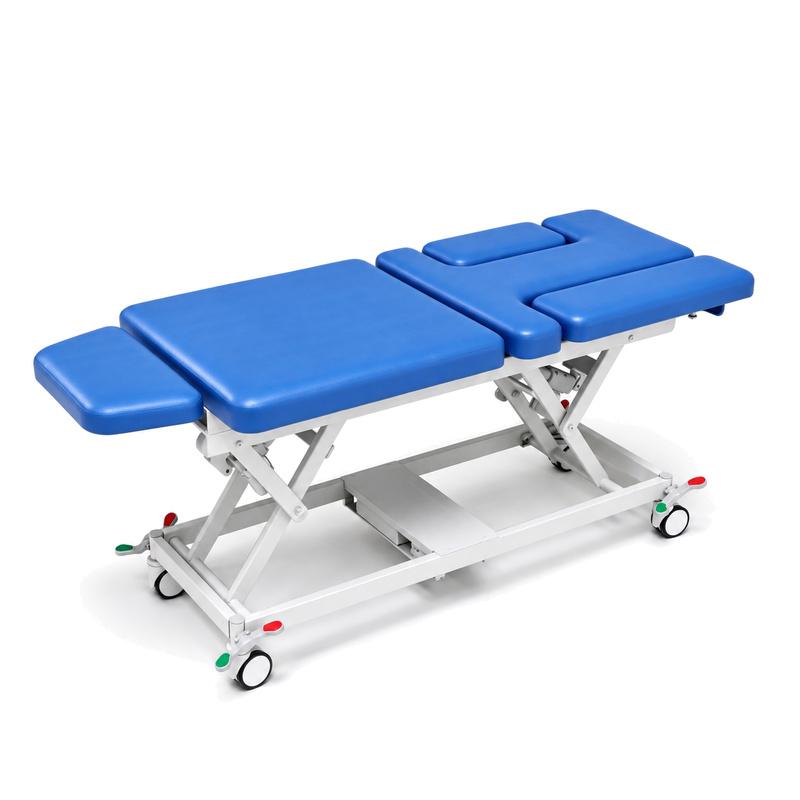

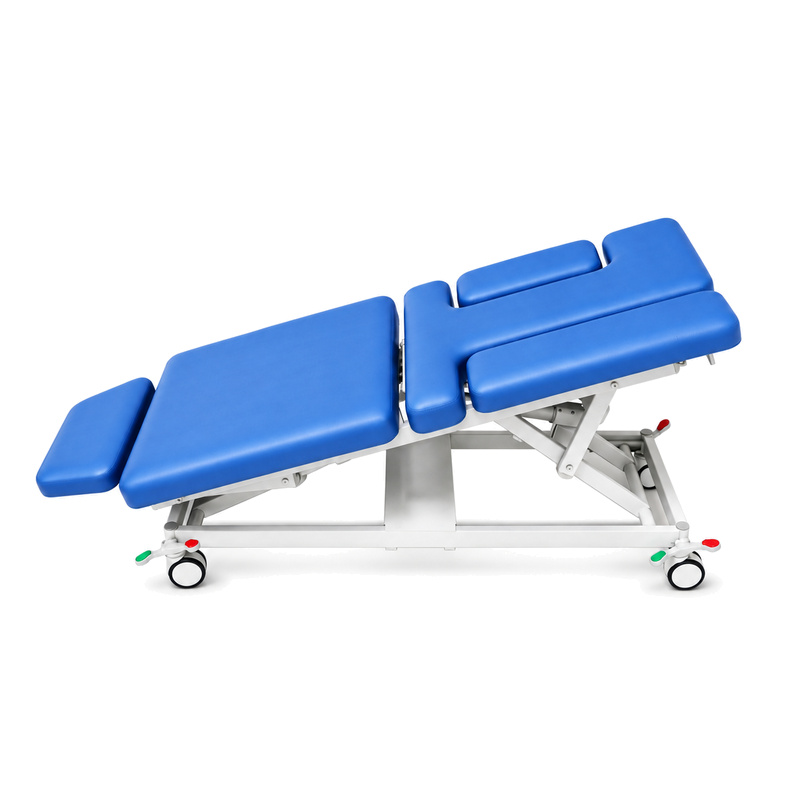

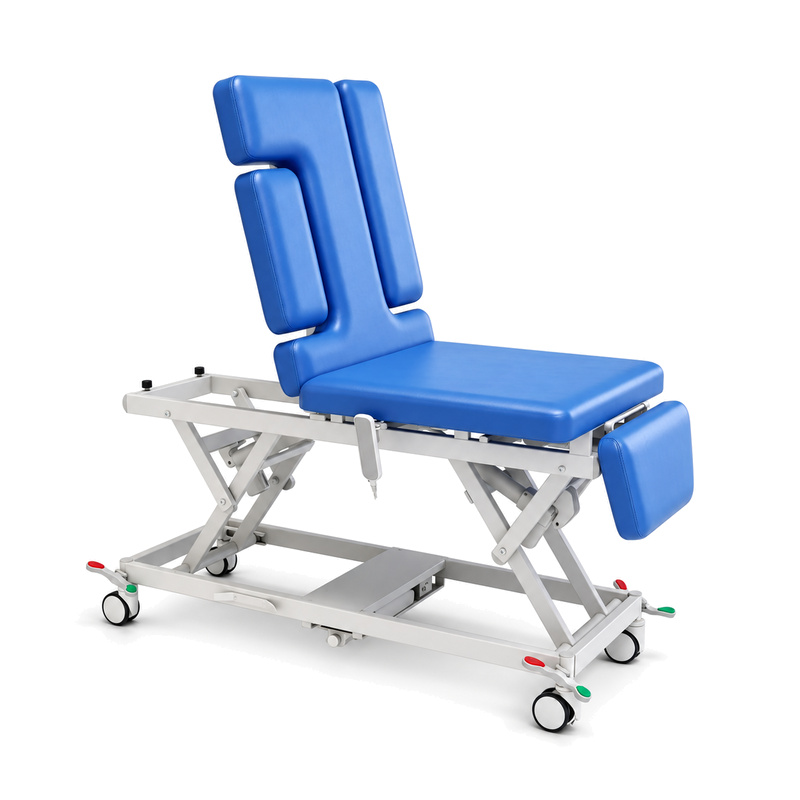

Electric Ultrasound Examination Table KFM-C415

Electric Ultrasound Examination Table  KFM-C415

Electric Ultrasound Examination Table KFM-C415

Height Adjustment: 45–85 cm
Backrest / Head Section Adjustment: 0–75°
Leg Section Adjustment: 0–80°
Trendelenburg Tilt: 0–17°
Reverse Trendelenburg Tilt: 0–17°
Left-Side Panel Adjustment: Manual, 0–75°
Right-Side Imaging Window: Manually retractable; adjustment range: 0–38 cm
Padding Thickness: 8 cm
Support Board Thickness: 15 mm
Upholstery: Flame-retardant upholstery
Upholstery Flammability Standard: BS 5852*
Upholstery Properties: Stain-, mildew- and abrasion-resistant
Caster Diameter: 100 mm
Battery System: Rechargeable battery system
Emergency Stop: Included
Packing Dimensions: 187 × 80 × 49 cm
Packing Volume: Approximately 0.73 m³
Hardware Warranty: 3 years
Electrical Components Warranty: 2 years

  • Details

The KFM-C415 electric ultrasound examination table offers 45–85 cm height adjustment, adjustable back and leg sections, and Trendelenburg and reverse Trendelenburg positioning. A manually retractable right-side imaging window and an adjustable left-side panel provide access for ultrasound examinations. The table features 8 cm high-resilience foam padding, a rechargeable battery system and an emergency stop.







What is the height adjustment range of the KFM-C415?
The table height adjusts from 45 to 85 cm (17.7–33.5 in).



How is imaging access adjusted?
The right-side imaging window retracts manually through a 0–38 cm adjustment range. The left-side panel adjusts manually from 0° to 75°.



What warranty is provided?
The warranty covers hardware components for 3 years and electrical components for 2 years.
