DP-S805 High Quality Treatment Examination Table

Dongpin S series electric physiotherapy bed is our outstanding design for the medical industry for 17 years. The beds designed by Dongpin are recognized by customers around the world.

The DP-S805 electric physiotherapy bed features a very sturdy physiotherapy bed designed for regular weight bearing applications.

This electric physiotherapy bed is designed and operated according to ergonomics to benefit patients and doctors.

Standard parameters:

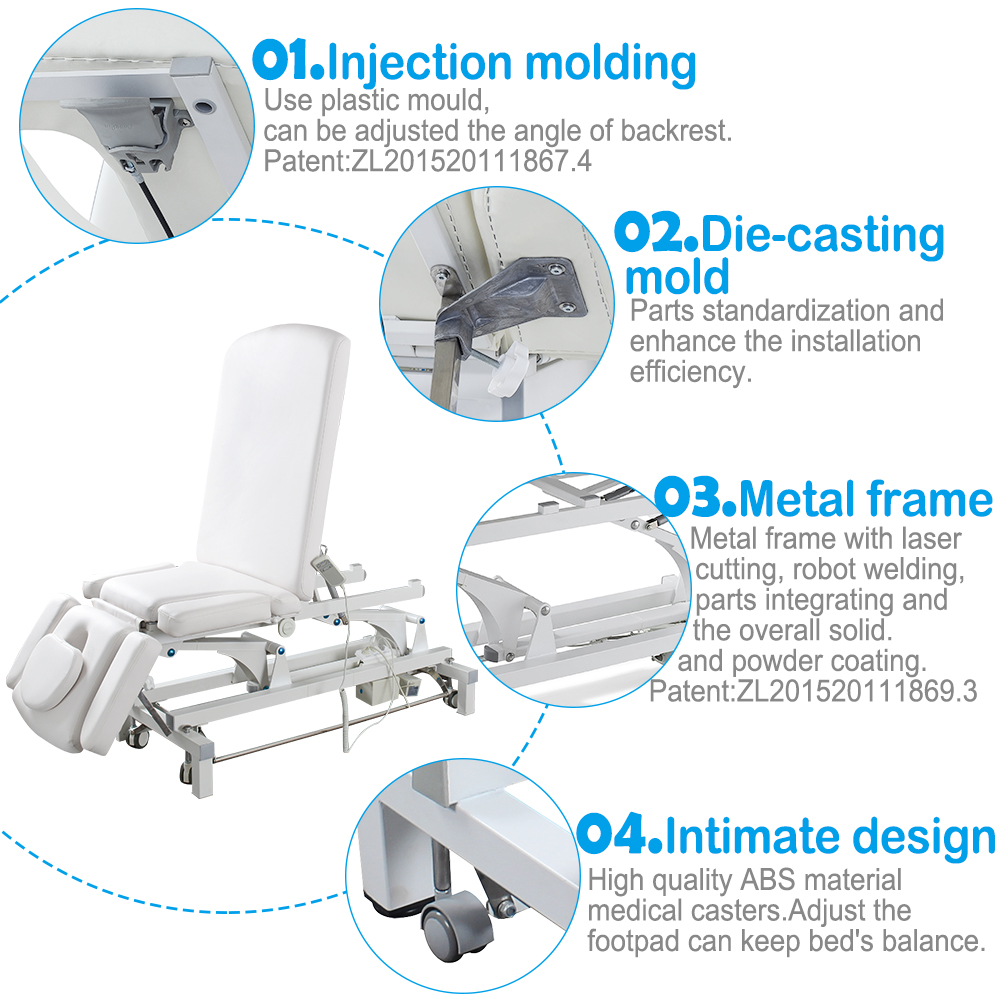

1. Adopt mature and stable linkage mechanism as the linkage transmission device.
2. The medical motor with huge driving force and quietness makes the whole lifting process smooth and quiet.
3. The chassis is robot welded, which reduces the mistakes caused by manual welding and makes the physiotherapy bed more stable.
4. The physiotherapy bed has 5 kinds of multifunctional bed board options, which can meet the different operation requirements in the physiotherapy and massage process.
5. The physiotherapy bed is equipped with two motors to control the overall lifting and cushion lifting.

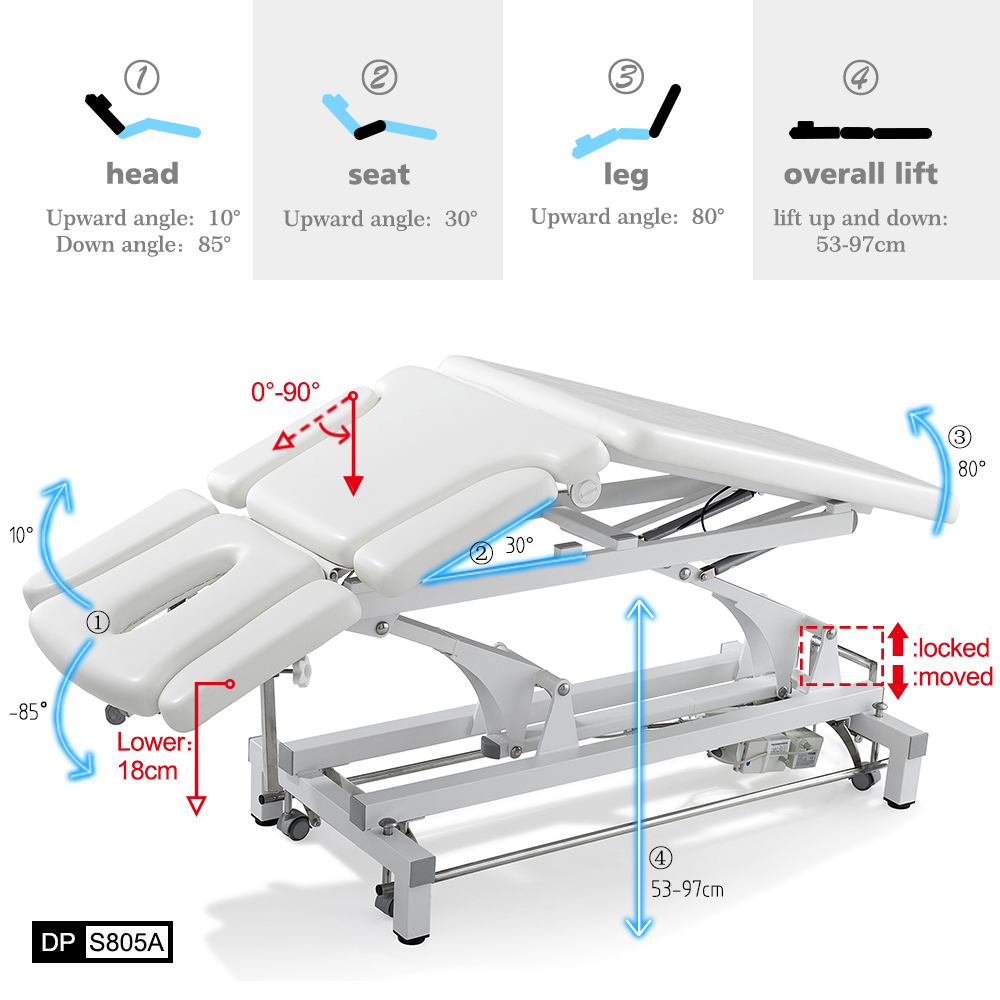

6. Foot control and manual operation, the overall height can be adjusted 53-97 cm.
7. The cushion lift function is designed for waist and back care with an angle of 30°.
8. Adjustable backrest, double mast support, adjustable angle 10 ° - 85 °.
9. The legs are manually adjusted to an angle of 80°.
10. Product bearing weight 150KG, high quality ABS material medical casters. The bed is stable and stable.

Standard option:
Electric hand control
2. Foot control + side control
3. Can be equipped with a towel bar
4. Leather multicolor selection
5. Please contact us if you need more accessories.

Dimensions:
Overall length: 197cm
Head length: 45cm
Middle length: 51cm
Leg length: 97cm
Interior width: 69cm
Adjustable height: 53cm – 97cm
Foam thickness: 5cm
Foam density: 36g / m2
Open: 197 x 69 x (53-97) cm
Packing: 200 x 70 x 58cm (thick cardboard box)
Net weight / gross weight: 83 / 93kgs

Patient check bed size picture:
